This sample allows the user to create a temporary connection definition at run-time and the master-details relationship between datasets using TFDQuery to work with MSSQL databases.
Table of Contents
Location
You can find the MSSQL sample project at:
- Start | Programs | Embarcadero RAD Studio Sydney | Samples and then navigate to:
Object PascalDatabaseFireDACSamplesGetting StartedMSSQL
- Subversion Repository:
- You can find Delphi code samples in GitHub Repositories. Search by name into the sample repositories according to your RAD Studio version.

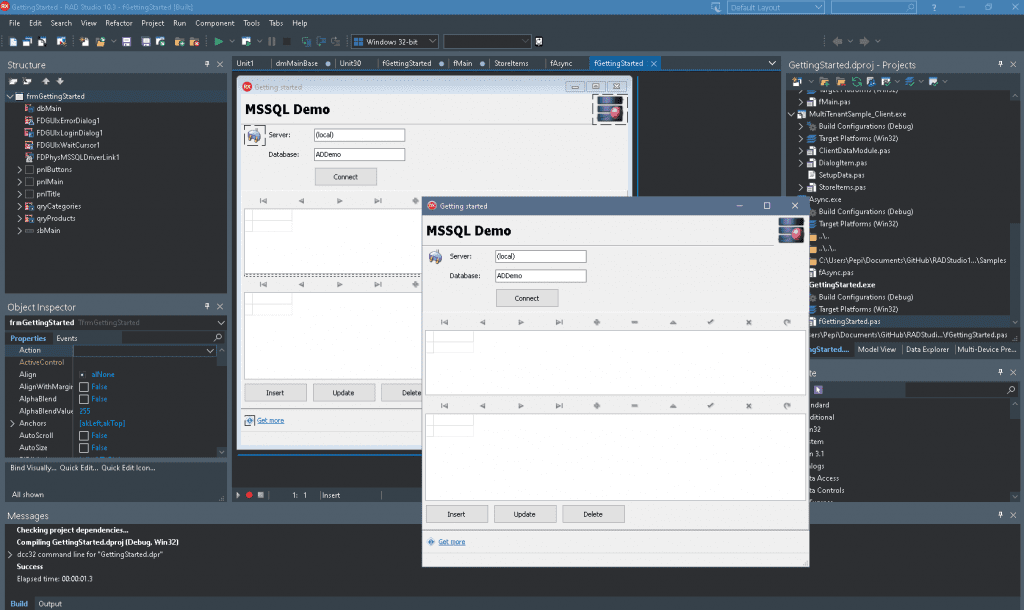

How to Use the Sample
- Navigate to the location given above and open
GettingStarted.dproj
. - Press F9 or choose Run > Run.
![MSSQL | Embarcadero RAD Studio Delphi C++Builder Blogs](https://i0.wp.com/blogs.embarcadero.com/wp-content/uploads/2020/10/MSSQL.png?resize=750%2C447&ssl=1)
Files
File in Delphi | Contains |
---|---|
GettingStarted.dproj GettingStarted.dpr | The project itself. |
fGettingStarted.pas fGettingStarted.fmx | The main form. |
Implementation
The sample implements the following features.
Creating temporary connection definition
The simplest way to configure the connection to the MS SQL database at run-time is to build a temporary connection definition:
1 2 3 4 5 6 7 8 9 10 11 |
<strong>with</strong> dbMain <strong>do</strong> <strong>begin</strong> Close; <em>// create temporary connection definition</em> <strong>with</strong> Params <strong>do</strong> <strong>begin</strong> Clear; Add('DriverID=MSSQL'); Add('Server=(local)'); Add('Database=FDDemo'); <strong>end</strong>; Open; <strong>end</strong>; |
In the sample, the temporary definition is created when clicking the Connect button.
Master Details
In the demo database, the Categories and Products tables have one-to-many relations by CategoryID
field. The qryCategories.SQL property is set up as follows:
1 |
select * from Categories |
In addition, the qryProducts.SQL property is set up as follows:
1 2 |
select * from Products where CategoryID = :CategoryID |
Finally, the qryProducts.MasterSource property is set to dsCategories
, while the MasterFields property is set to CategoryID
. This creates a master-details relationship between the datasets.
Executing queries
Simple query execution is demonstrated via ExecSQL method of TFDConnection.
Inserting a record providing parameters of various types:
1 2 |
dbMain.ExecSQL('insert into Categories(CategoryName, Description, Picture) ' + 'values(:N, :D, :P)', ['New category', 'New descr', $0334]); |
Updating records:
1 2 |
dbMain.ExecSQL('update Products set UnitPrice = UnitPrice * :P1 + :P2 ' + 'where ProductID < 3', [Random(5), Random(3)]); |
Deleting a record:
1 |
dbMain.ExecSQL('delete from Categories where CategoryName like :N', ['New category']); |
Getting a scalar value from the database:
1 |
iID := dbMain.ExecSQLScalar('select MAX(CategoryID) from Categories'); |
If you want to check the original post of this sample, please visit the link below:
http://docwiki.embarcadero.com/CodeExamples/Sydney/en/FireDAC.MSSQL_Sample
You may quickly install servers on Windows operating systems using IDE software. This may help you connect to the Microsoft SQL Server, when developing in Delphi and C++ environments. You can request a free demo here.
