Sometimes Developers may need to perform implementations based on Machine’s Battery and CPU power status. How to collect such information’s quickly ? Don’t know how to do. Don’t worry. MiTec’s System Information Management Suite’s component helps to retrieve such information faster. In this blog post we will learn how to use the TMiTec_APM component to collect power status of your machine with the sample application.
Platforms: Windows.
Installation Steps:
You can easily install this Component Suite from GetIt Package Manager. The steps are as follows.
- Navigate In RAD Studio IDE->Tools->GetIt Package Manager->select Components in Categories->Components->Trail -MiTec system Information Component Suite 14.3 and click Install Button.
- Read the license and Click Agree All. An Information dialog saying ‘Requires a restart of RAD studio at the end of the process. Do you want to proceed? click yes and continue.
- It will download the plugin and installs it. Once installed Click Restart now.
How to run the Demo app:
- Navigate to the System Information Management Suite trails setup, Demos folder which is installed during Get It installation e.g) C:UsersDocumentsEmbarcaderoStudio21.0CatalogRepositoryMiTeC-14.3DemosDelphi10
- Open the APM project in RAD studio 10.4.1 compile and Run the application.
- This Demo App shows how to access the system information like Battery and CPU Power Status.
Components used in MSIC APM Demo App:
![APMProperties7451327 | Embarcadero RAD Studio Delphi C++Builder Blogs apmproperties 7451327](https://i0.wp.com/blogs.embarcadero.com/wp-content/uploads/2021/01/APMProperties-7451327.png?resize=305%2C363&ssl=1)
- TMiTeC_APM: Component to retrieve Machines AC, Processor and Battery Power Status information’s by its properties such as ACPowerStatus, Battery by Battery Index, ProcessorPowerStatus by CPU index.
- TTabSheet1 shows the list of AC power status and the selected battery status properties and TTabSheet2 shows the Processor power status properties.
Implementation Details:
- An instance is created APM of TMiTeC_APM. Using APM properties Machine AC Power status, Battery related properties such as Manufacturers, Charge status, Battery Life, etc. were added to the TabSheet1 UI components.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 |
procedure TwndMain.cbBatChange(Sender: TObject); var s: string; begin eBat.Text:=''; eBatCap.Text:=''; eBatRemain.Text:=''; eBatRate.Text:=''; eBatLife.Text:=''; pbBat.Position:=0; if cbBat.ItemIndex=-1 then Exit; with APM.Battery[cbBat.ItemIndex] do begin if APM.BatteryChargeStatus<>[bsNoBattery] then begin s:=''; if PowerState and BATTERY_CHARGING=BATTERY_CHARGING then s:=s+'charging, '; if PowerState and BATTERY_CRITICAL=BATTERY_CRITICAL then s:=s+'critical, '; if PowerState and BATTERY_DISCHARGING=BATTERY_DISCHARGING then s:=s+'discharging, '; if PowerState and BATTERY_POWER_ON_LINE=BATTERY_POWER_ON_LINE then s:=s+'power on-line, '; SetLength(s,Length(s)-2); eBat.Text:=s; eBatMan.Text:=Manufacturer; eBatChem.Text:=Chemistry; eBatID.Text:=UniqueID; eBatLife.Text:=FormatSeconds(EstimatedTime); if Capacity<>BATTERY_UNKNOWN_CAPACITY then eBatCap.Text:=Format('%d Wh',[Capacity div 1000]) else eBatCap.Text:='?'; if Voltage<>BATTERY_UNKNOWN_VOLTAGE then eBatVolt.Text:=Format('%d V',[Voltage div 1000]) else eBatVolt.Text:='?'; if CurrentCapacity<>BATTERY_UNKNOWN_CAPACITY then eBatRemain.Text:=Format('%d Wh',[CurrentCapacity div 1000]) else eBatRemain.Text:='?'; if Rate<>BATTERY_UNKNOWN_RATE then eBatRate.Text:=Format('%d W',[Rate div 1000]) else eBatRate.Text:='?'; pbBat.Max:=Capacity; pbBat.Position:=CurrentCapacity; cbBat.Hint:=SymbolicLink; end else eBat.Text:='No battery present'; end; end; |
- Using APM.ProcessorPowerStatus property provides information such as Max Frequency, Current Frequency, Frequency Limit, etc. for the selected CPU index and were added to the TabSheet2 UI components.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 |
procedure TwndMain.cbCPUChange(Sender: TObject); begin if cbCPU.ItemIndex=-1 then Exit; with APM.ProcessorPowerStatus[cbCPU.ItemIndex] do begin eMaxFreq.Text:=Format('%d MHz',[MaxMHz]); eFreq.Text:=Format('%d MHz',[CurrentMHz]); eFreqLimit.Text:=Format('%d MHz',[MHzLimit]); eMaxIdle.Text:=Format('%d',[MaxIdleState]); eIdle.Text:=Format('%d',[CurrentIdleState]); if MaxMHz>pbCPU.Max then pbCPU.Max:=MaxMHz; pbCPU.Position:=CurrentMHz; end; end; |

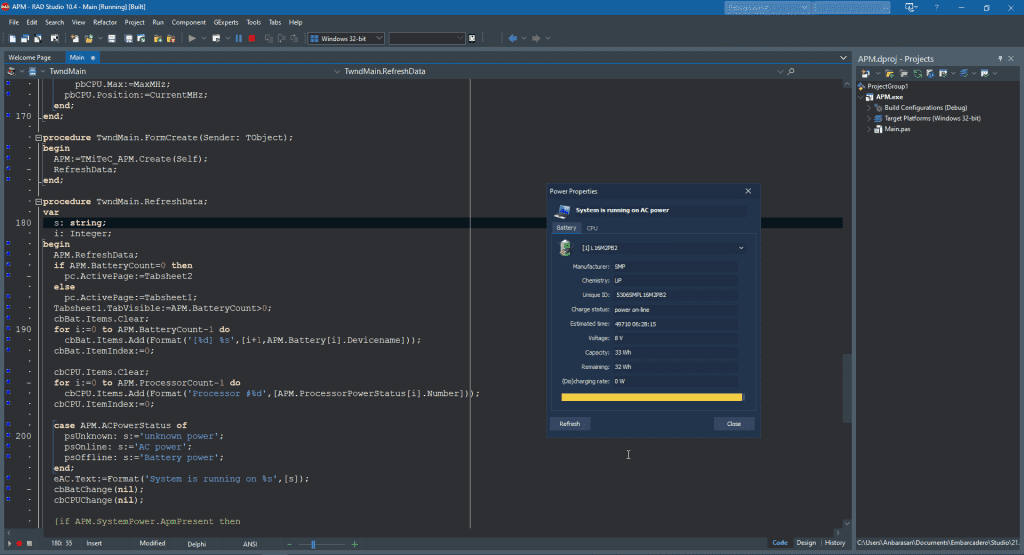

![APMDemo2152820 | Embarcadero RAD Studio Delphi C++Builder Blogs apmdemo 2152820](https://i0.wp.com/blogs.embarcadero.com/wp-content/uploads/2021/01/APMDemo-2152820.png?resize=750%2C406&ssl=1)
It’s that simple to collect the Machines Power status information for your application. Use this MiTeC component suite and get the job done quickly.
