It is surprisingly easy to add SVG support to your applications. Here is third party Delphi and C++ Builder component from WINSOFT for work with Scalable Vector Graphics files. Scalable Vector Graphics is XML-based vector image format for two-dimensional graphics.
How to install component
1) Download archive from: https://www.winsoft.sk/fsvgcanvas.htm
2) Extract files from archive to any folder.
3) You need to copy all files from the folder corresponding to the Delphi version to the project folder. Please carefully check your Delphi version and folder name because DCUs are version dependent.
4) Compile and execute demo
Example

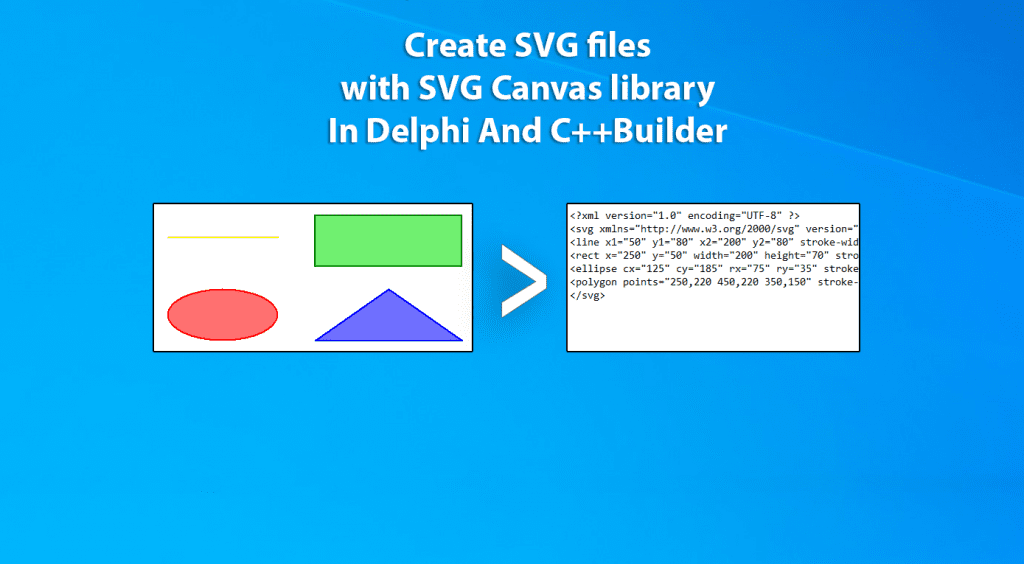

[crayon-673f4cf6a58a8217972583/]After running you will get the resulting file with the following content:
<?xml version=“1.0“ encoding=“UTF-8“ ?> <svg xmlns=“http://www.w3.org/2000/svg“ version=“1.1“> <line x1=“50“ y1=“80“ x2=“200“ y2=“80“ stroke-width=“2“ stroke=“#FFFF00“/> <rect x=“250“ y=“50“ width=“200“ height=“70“ stroke-width=“2“ stroke=“#008000“ fill=“#70F070“/> <ellipse cx=“125“ cy=“185“ rx=“75“ ry=“35“ stroke-width=“2“ stroke=“#FF0000“ fill=“#FF7070“/> <polygon points=“250,220 450,220 350,150“ stroke-width=“2“ stroke=“#0000FF“ fill=“#7070FF“/> </svg>This component was developed by WINSOFT.
The component converts FMX canvas drawing to SVG format
This component has both versions for FireMonkey and for VCL applications to Delphi / C ++ Builder 10 – 10.4.
Works with: Delphi, C ++ Builder, RAD Server, FireMonkey
Works on: Windows 32-bit, Windows 64-bit, macOS, iOS and Android
Source code included in registered version. Royalty free distribution with application without any limitation.
Related links
Here is packages for VCL and Firemonkey:
SVG Canvas library
SVG Canvas library for FireMonkey
Head over and check out the full WINSOFT SVG Canvas Library for FireMonkey in Delphi and C++Builder.
